地形编辑

除了使用平台自带的编辑器，还可以用3dsMax 制作地形。

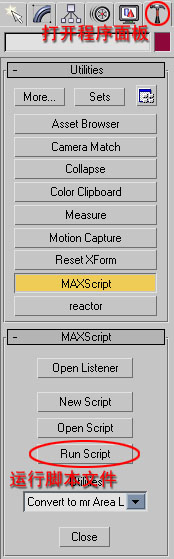

  • 首先,找到3DSMAX的程序面板,点击MAXScript,然后点击RunScript:

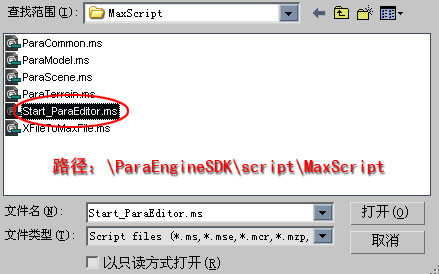

  • 打开脚本文件Start_ParaEditor.ms:

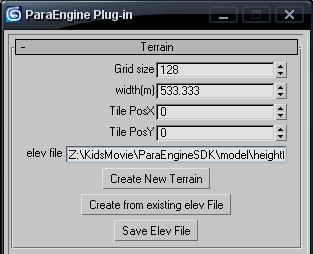

  • 对照下图所示,基本参数不变,点击Create New Terrain:

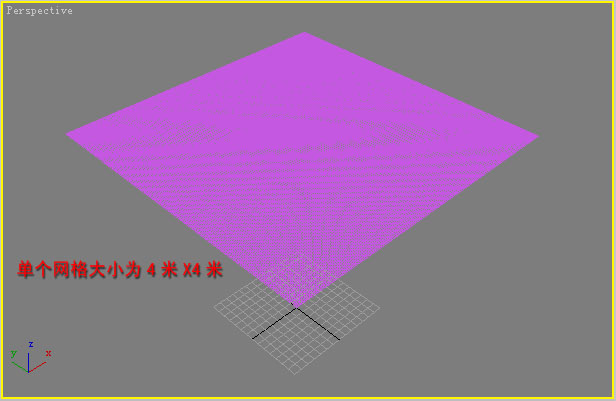

  • 将创建出如下图所示的网格,单个网格为4X4米,注意修改点或面时只能朝上或下移动:

  • 最后点击Save Elev File保存地形文件至\ParaEngineSDK\model\others\terrain\:
